| City, Country | Berlin, Germany | |
| Year | 2017–2020 | |
| Client | Senat für Bau- und Wohnungswesen, Berlin | |
| Architect | NKBAK | |
| Services | Structural Engineering Building Physics |
|
| Facts | GFA Sports halls: approx. 3,120 m² | GFA School buildings: approx. 12,000 m² | Joint venture with: | |

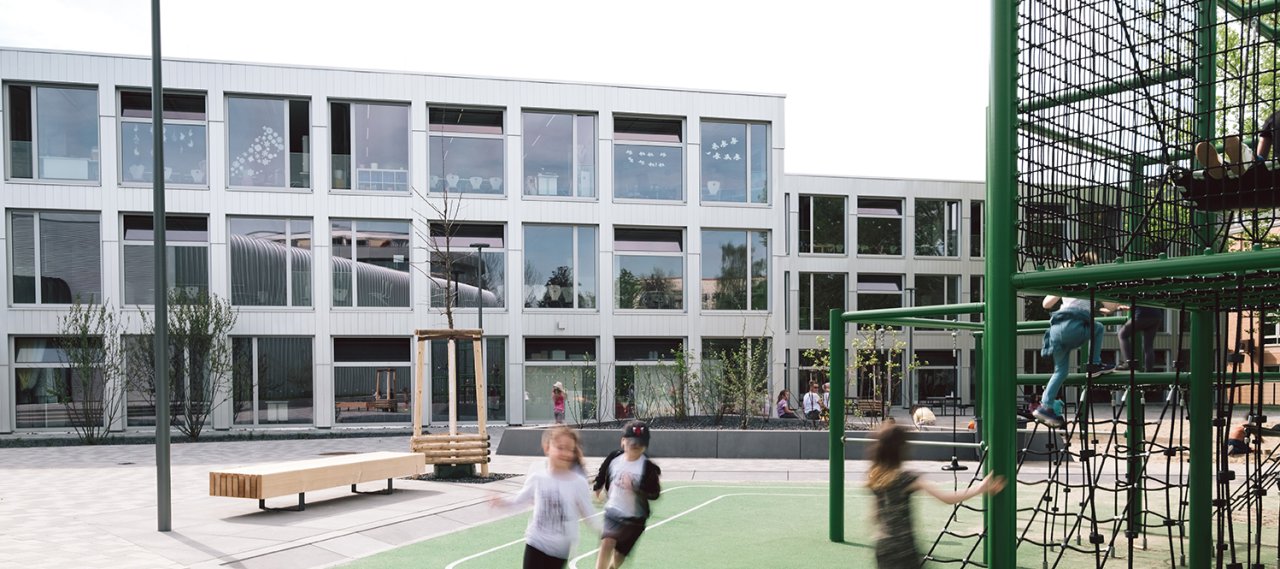

The new buildings in Sewanstrasse and Konrad-Wolf-Strasse are two primary schools built in modular timber construction as part of the Berlin Senate's school building offensive. The school buildings are constructed in a three-storey modular design, the sports hall as a conventional load-bearing structure. All buildings are realized in timber and without basements.
The modules of the two school buildings are 2.8 m wide, 8.4 m long and 3.4 m high. They will have a partition wall to the corridor and end at façade level. The ceilings of the corridors are suspended between the modules. Beams are provided in the areas where a change in direction of the module arrangement takes place.
The planned mullion-transom façades do not bear any loads from the supporting structure. The sports hall roofs are planned with glulam solid cross-sections or alternatively with prefabricated ribbed panels. The roof structure transfers the loads uniaxially to the longitudinal walls. The vertical load transfer is made via walls or beams at the transition from the sports hall to the adjoining rooms. The bracing is realized by the outer walls and the roof pane.
