Lervig Brygge

en | de | fr | no | nl
City, Country Stavanger, Norway
Year 2011–2016
Client Øya Lervig Brygge AS
Architect Lund Hagem Arkitekter, Atelier Oslo
Services Structural Engineering
Facts Height: 50 m | Surface area total: 21,000 m² | In collaboration with: BGKI

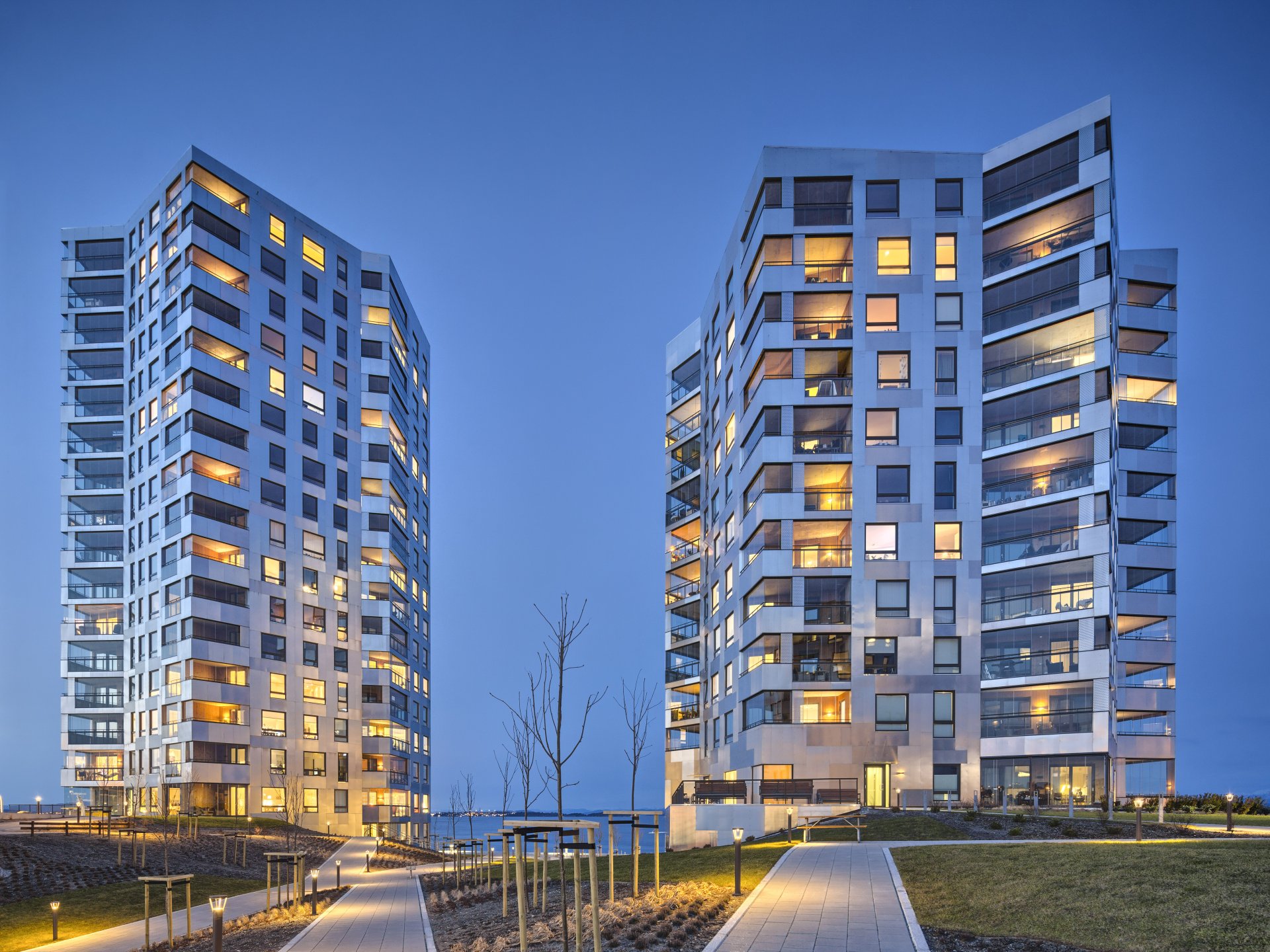

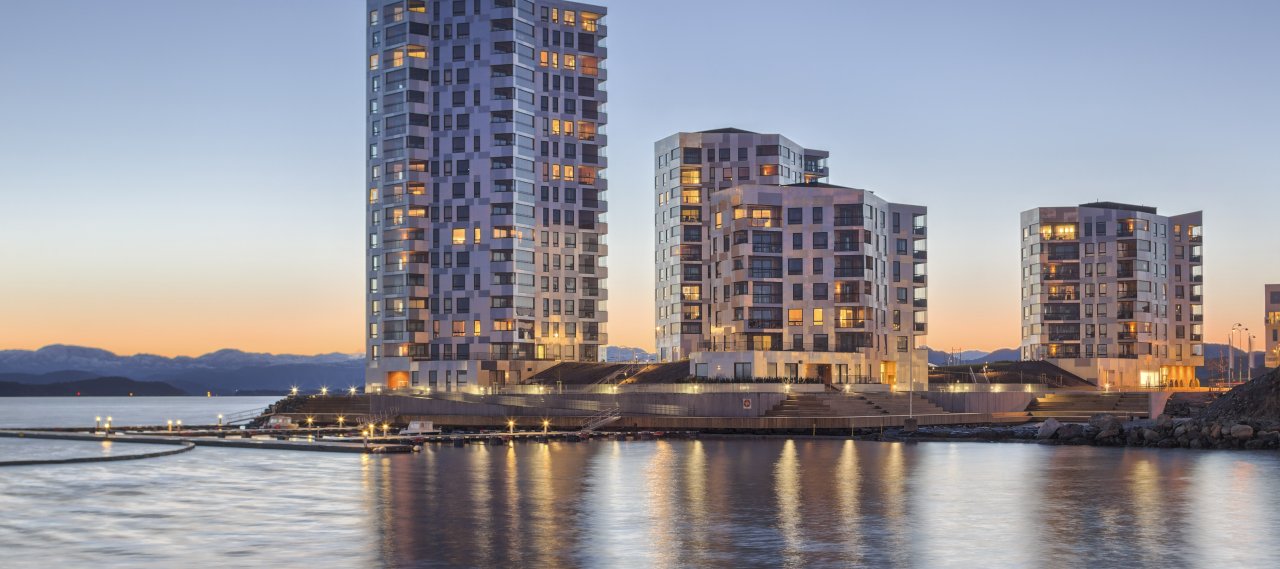

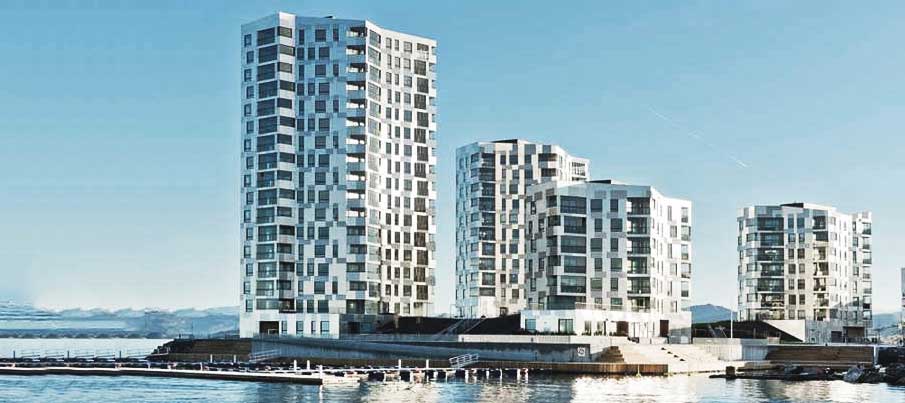

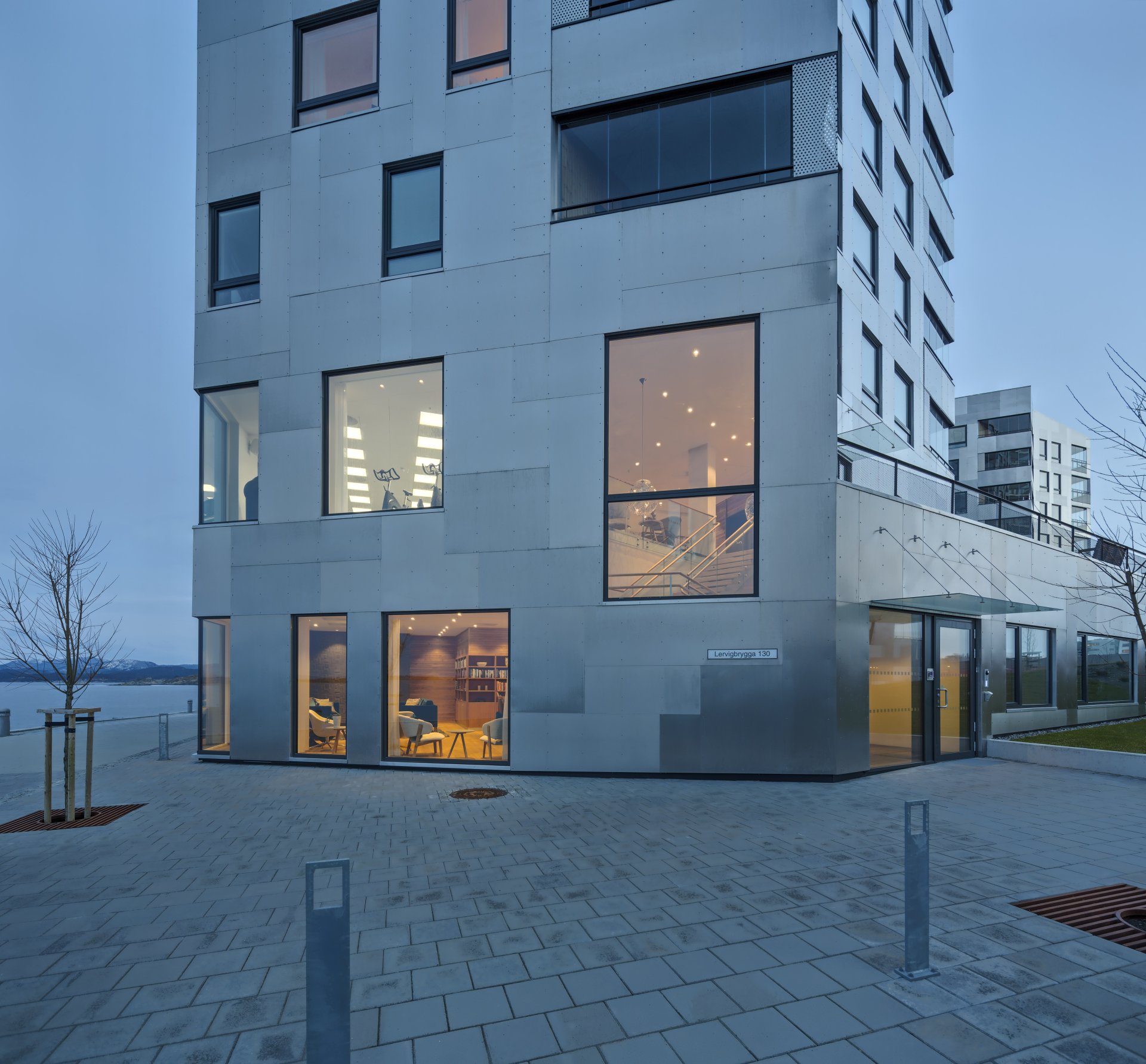

Lervig Brygge is part of a property development project in Stavanger, consisting of four high-rise towers with approximately 200 exclusive apartments on an artificial island. The project was developed in accordance with the client's specification for "plus-apartments", which is also used for other prestigious projects in central Oslo. A new seafront promenade has been established with entrance zones to the buildings, and underneath the buildings there is a shared two-storey underground car park.

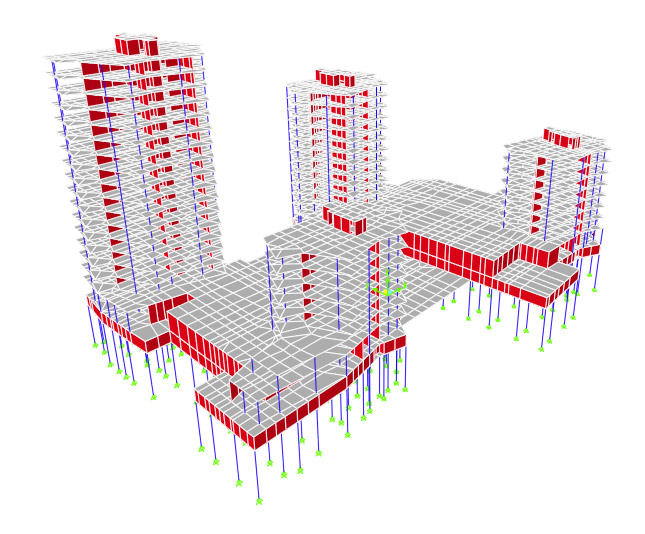

The shell of the towers was constructed using in-situ concrete. Bubble ceilings allow for column-free rooms, while the core walls were built using a sliding construction method.

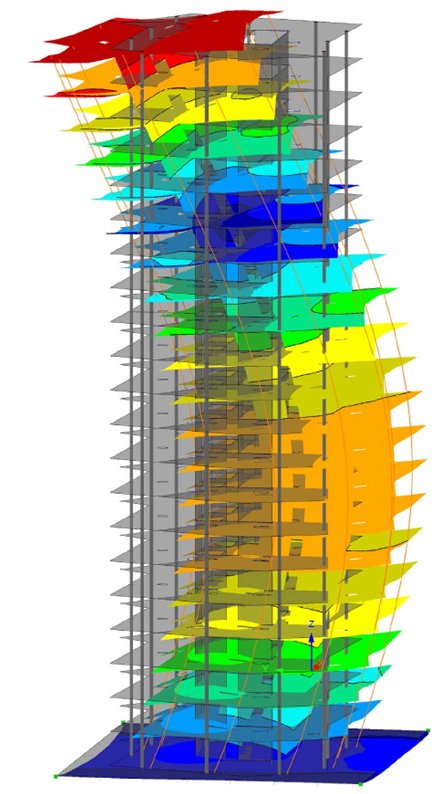

The bracing of the four buildings is based on an innovative concept: a friction plate between the buildings with a load from the green area braces the tower blocks in combination with inclined piles.

Structural Engineering
High-Rise
Residential
Reinforced Concrete
Planning
© B+G

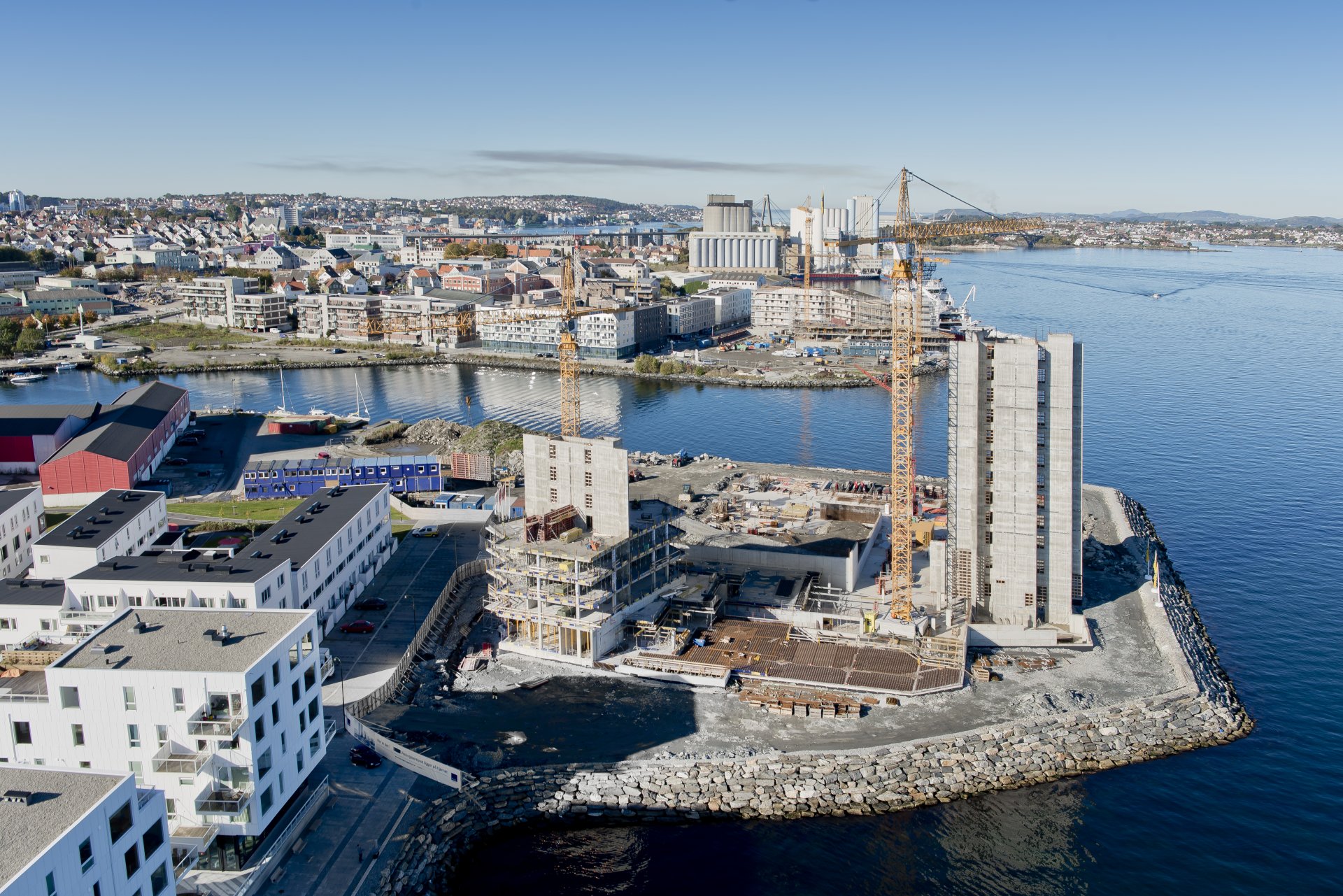

Construction
© AF Gruppen
Completion
© Sindre Ellingsen
